Custom non-combustible heat shield deflector for existing fireplace mantle beams

Non Combustible Heat Resistant Shield Deflector Plate - supplied with black heat grade steel shield, screws and spacers.

Also available as a stand alone tv protector shelf, click here to view

Designed to be attached to an existing beam in order to comply with current building regs.

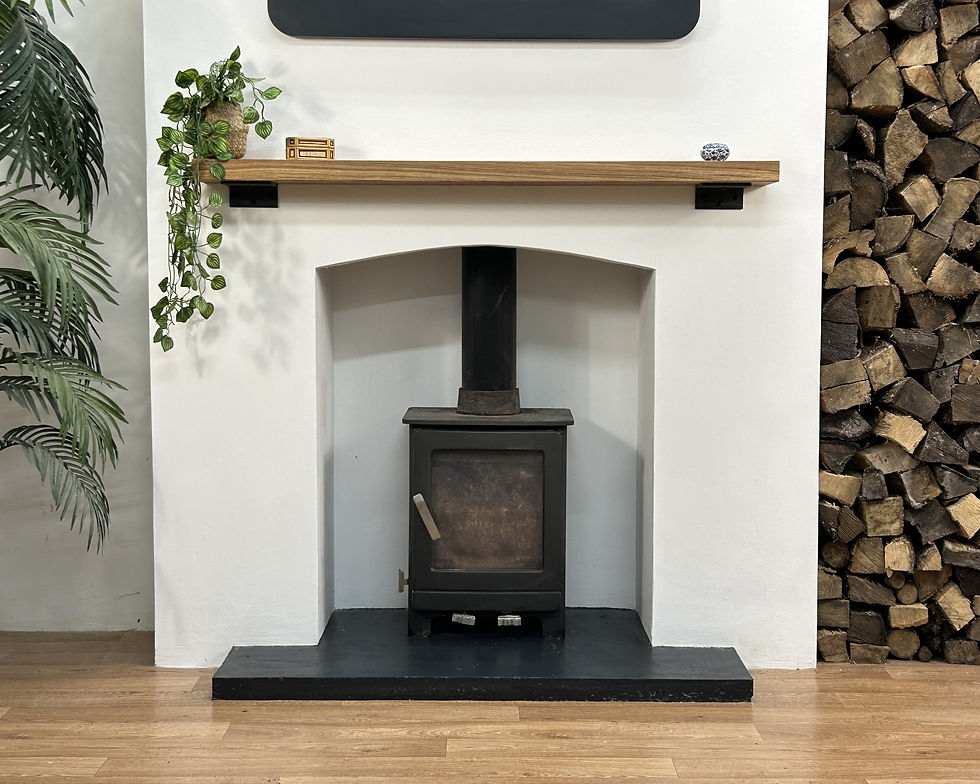

This great heat shield deflector allows the mantel to be much closer than standard timber mantle beams (read below for more info). perfect for above a wood burner, inset stove, open fires, mantelpiece stoves, kitchen chimney hoods, and more. Allowing to place your wooden beam lower while still adhering to current building regs.

Very popular for those who have a beam in place and have a new stove fitted which needs to comply to new UK building regs also a great choice for those fitting a tv above the stove.

• Can be positioned as close as 150mm from the heat source, much closer than unshielded beams • Heat shield allows low heat conduction meaning the wood top remains cool/warm • Supplied with everything needed. black 12mm heat resistant spacers, screws and easy to follow instructions • Delivered fully insured and traceable online • custom sizes to suit your needs

-Custom Length-  400mm up to 1450mm

-Custom Depth - (wall to front) 35mm to 225mm

Made from my stock steel so the price is the same regardless of size, need it longer or deeper? no probs just get in touch for a quote..

-Thickness- 2mm

-Materials included- Black 12mm heat resistant spacers to allow airflow between materials Black Heat grade steel plate shield  Black screws

-Placement- The heat shield should ideally cover the entire underside of the mantel. Recommended distances from heat source to allow for adequate air flow and adhere to current UK building regs. 300mm from inset/cassette stoves, but may be reduced to 250mm if appliance manufacture guidance allows. or 1.5x the diameter of a wood burner flue. For example, a 4-inch flue would require a distance of 150mm or a 5-inch would require 190mm, etc. The flue is considered a heat source (unless insulated), so the mantel should be placed at a distance, diagonally or vertically measured from the flue to the underside of the mantel shield.

Current building regs stipulate that unshielded mantels require 450mm+ clearance or 3x the flue diameter, so our shielded versions allow around 50% reduction.

Note: the above is based on UK building regulation guidance and top brand stove manufactures recommendations. You should always refer to your specific appliance manufacturers' guidance for safe clearances to heat shield/deflector mantels.   Any questions, just get in touch.
